sprues

A local pipeline that takes a photo of a plastic sprue and segments it into individual bit crops, then clusters visually-identical bits so a single human label propagates to every member.

The pipeline runs entirely on classical CV (OpenCV) for segmentation and a local DINOv2 image-embedding model for clustering. No cloud APIs, no LM Studio dependency, sub-minute end-to-end on Apple Silicon.

Usage

Add a new sprue:

uv run python pipeline.py /path/to/sprue-photo.jpg out
# → out/<short-hash>/orig.jpg + outputs
open out/<short-hash>/clusters.html
# Edit out/<short-hash>/labels.json to attach names to clusters; reload.

Re-process every sprue already in out/:

make regen   # iterates out/*/orig.* and re-runs the pipeline on each

Each out/<short-hash>/ contains:

• orig.jpg — copy of the input photo (committed)
• 00_feeders.png 01_plastic.png 02_runner.png 03_masks.png — debug overlays at each pipeline stage (committed)
• crops/ masks/ — per-bit images (gitignored, regenerate via pipeline)
• clusters.html clusters.json segments.json labels.json — contact sheet, manifests, user-editable label scaffold (gitignored)

Example

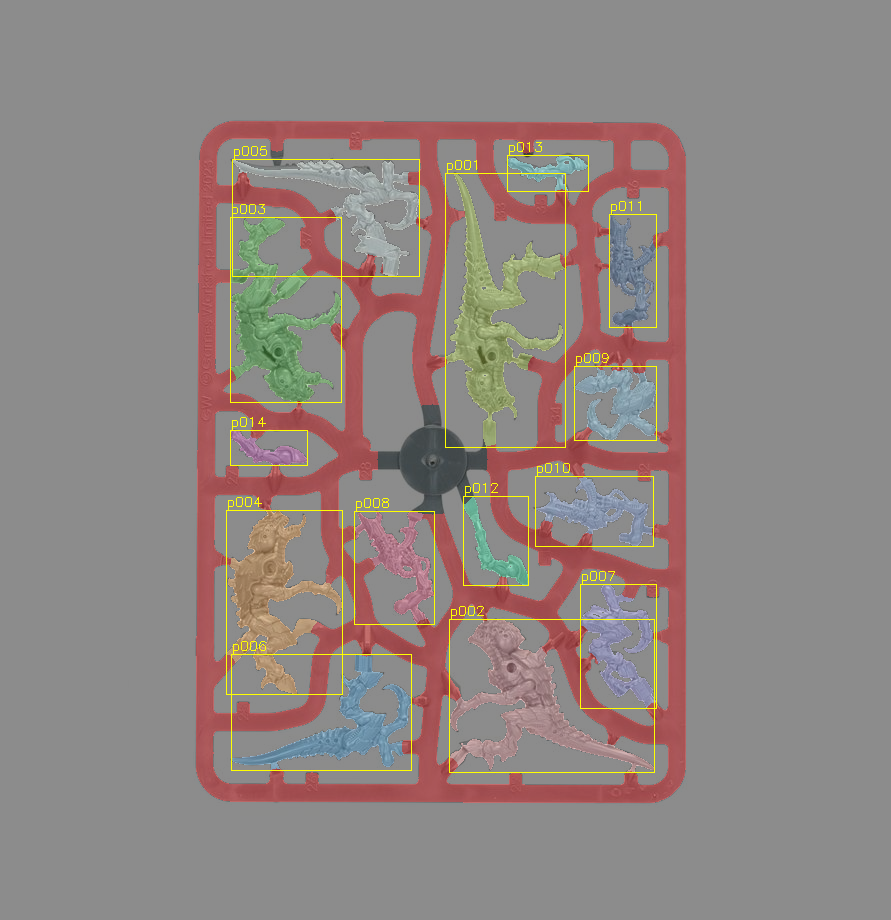

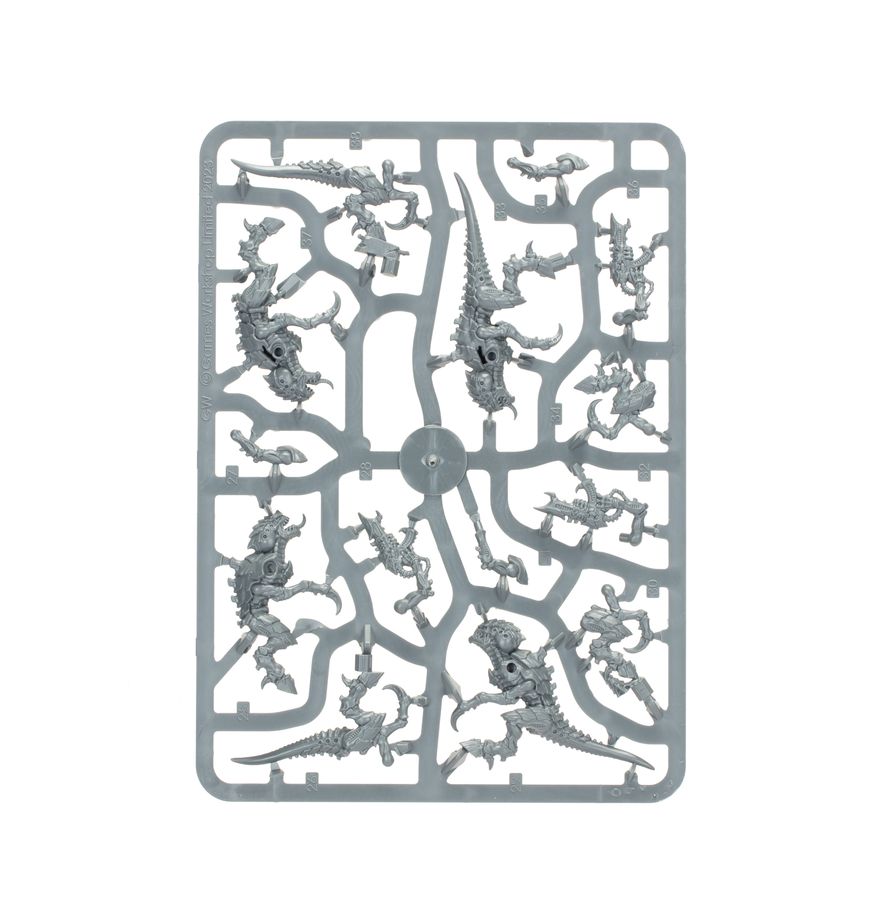

Termagants sprue, original photo and segmented bits (one colour per bit, runner overlay in red):

Input	Segmented

Test sprues currently in tree (click the dir for full debug overlays):

sprue	dir	bits	clusters
Termagants (Tyranid, organic bits)	out/70a05231fe/	14	12
Intercessors v1 (Space Marines, dense grid)	out/f174fe6dbb/	59	36
Intercessors v2 (Space Marines, similar layout)	out/1ee24d83cd/	63	39
Rhino (vehicle, large flat panels)	out/404866c10c/	17	13

How it works

segment.py — turn a sprue photo into per-bit crops + masks:

1. Otsu-binarise the photo into a plastic-vs-background mask.
2. Detect ejector-tab/feeder discs by Hough circles. Filter by sprue-symmetry (centred on a vertical or horizontal axis), filled-disc-with-bright-centre pattern, and at least four radial runner spokes. Zero those discs in the plastic mask.
3. Erode the plastic; identify the runner network as the eroded connected component whose bbox spans the most of the image (not the largest by area — vehicle bits dominate that). Dilate it back, close pinhole gaps, thicken the walls so adjacent grid-cell bits don't bleed together.
4. bits_mask = plastic AND NOT runner_full. Each connected component is one bit, with sprue gates trimmed.
5. Filter out residual runner fragments by combined edge-density and thickness checks; verify each bit has at least some background-facing edge (real bits sit in cells, runner fragments are sandwiched in runner).

The script tries several erosion-kernel sizes and picks the trial with the most accepted bits.

cluster.py — DINOv2 image embeddings + agglomerative clustering on cosine similarity (threshold 0.80). Visually-identical bits land in the same cluster.

contact_sheet.py — render clusters.html showing one row per cluster with all member crops side-by-side, plus an editable labels.json scaffold.

pipeline.py — orchestrator: segment → cluster → contact sheet.

What's NOT in the pipeline

Bit names ("fleshborer", "body") aren't recovered automatically. Names come from the human via labels.json; the clustering ensures one label propagates across every copy of that bit on the sprue.

Files

• segment.py cluster.py contact_sheet.py pipeline.py — pipeline
• plan.md — the original architectural plan (kept for context; pipeline has since deviated in places, see lessons.md)
• lessons.md — design lessons captured during development (which approaches worked, which didn't, why)
• term-*.jpg term-instructions.pdf intercessors-*.jpg rhino-*.jpg — test inputs
• out/ — generated outputs (segmentation, clusters, contact sheet), gitignored
